The SN754410NEE4 is a quadruple high-current half-H driver designed to provide bidirectional drive currents up to 1 A at voltages from 4.5 V to 36 V.
SN754410NEE4 Half-H Driver：Alternatives, Pinout, Schematic
Motor / Motion / Ignition Controllers & Drivers Quad Half-Hs The SN754410NEE4 is a quadruple high-current half-H driver designed to provide bidirectional drive currents up to 1 A at voltages from 4.5 V to 36 V.
17
Sep 2, 2021
Booth Louis
SN754410NEE4
686In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $4.99944 | $5 |
| 10+ | $4.71645 | $47.16 |
| 100+ | $4.44948 | $444.95 |
| 500+ | $4.19763 | $2098.82 |
| 1000+ | $3.96003 | $3960.03 |
Unit Price:$4.99944
Subtotal: $5
Quick Links

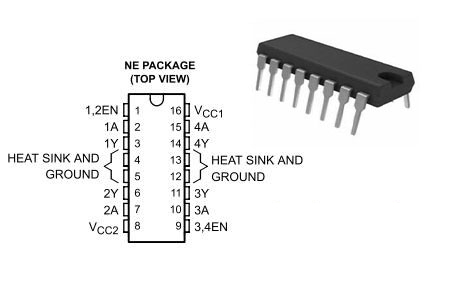

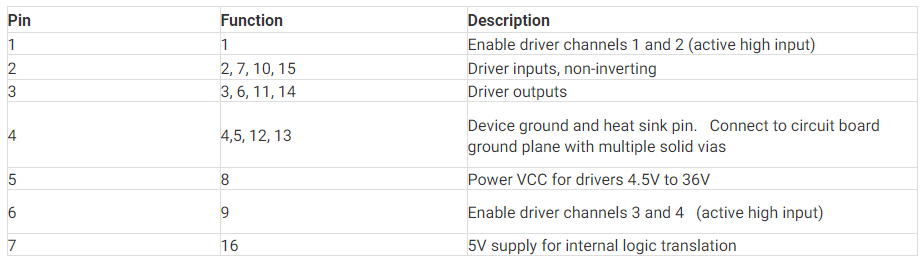

SN754410NEE4 Pinout
SN754410NEE4 CAD Model

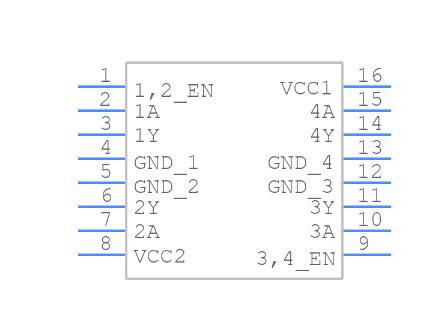

Symbol
Symbol

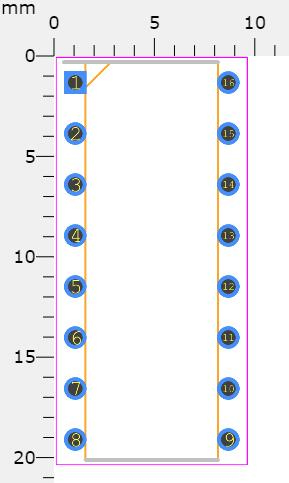

Footprint
Footprint

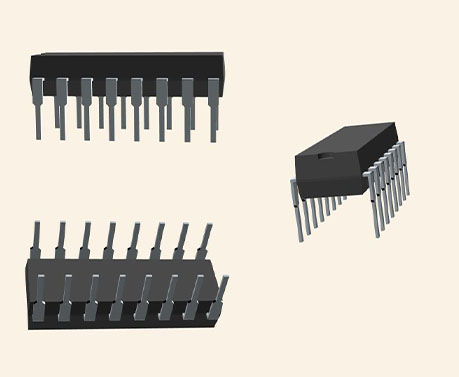

3D Model
3D Model
SN754410NEE4 Description
The SN754410NEE4 is a quadruple high-current half-H driver designed to provide bidirectional drive currents up to 1 A at voltages from 4.5 V to 36 V. The device is designed to drive inductive loads such as relays, solenoids, dc and bipolar stepping motors, as well as other high-current/high-voltage loads in positive-supply applications. All inputs are compatible with TTL and low-level CMOS logic.
Specifications
Texas Instruments SN754410NEE4 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments SN754410NEE4.
SN754410NEE4 Tech Specifications
SN754410NEE4 Tech Specifications
Texas Instruments SN754410NEE4 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments SN754410NEE4.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 3 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 16-DIP (0.300, 7.62mm) | |
| Number of Pins | 16Pins | |
| Weight | 951.693491mg | |
| Operating Temperature | -40°C~150°C TJ | |
| Packaging | Tube | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 16Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Applications | DC Motors, General Purpose, Solenoids, Stepper Motors | |
| Max Power Dissipation | 2.075W | |
| Voltage - Supply | 4.5V~5.5V | |
| Terminal Position | DUAL | |
| Number of Functions | 2Functions | |
| Supply Voltage | 5V | |
| Base Part Number | SN754410 | |
| Pin Count | 16 | |
| Output Voltage | 36V | |
| Operating Supply Voltage | 36V | |
| Interface | Logic | |
| Output Configuration | Half Bridge (4) | |
| Output Current | 1A | |
| Supply Current-Max | 70mA | |
| Output Characteristics | STANDARD | |
| Output Polarity | TRUE |
| Product Attribute | Attribute Value | |
|---|---|---|
| Input Characteristics | STANDARD | |
| Voltage - Load | 4.5V~36V | |
| Number of Drivers | 4Drivers | |
| Output Peak Current Limit-Nom | 2A | |
| Supply Voltage1-Nom | 24V | |
| Turn Off Time | 0.8 µs | |
| Built-in Protections | TRANSIENT; THERMAL | |
| Load Type | Inductive | |
| Height | 5.08mm | |
| Length | 19.8mm | |
| Width | 6.35mm | |
| Thickness | 4.57mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
SN754410NEE4 Features
●1-A Output-Current Capability Per Driver
●Applications Include Half-H and FulI-H Solenoid Drivers and Motor Drivers
●Designed for Positive- Supply Applications
●Wide Supply-Voltage Range of4.5V to 36 V
●TTL- and CMOS-Compatible High-impedance Diode-Clamped Inputs
● Separate Input-Logic Supply Thermal Shutdown
●Internal ESD Protection
●Input Hysteresis Improves Noise Immunity 3-State Outputs
●Minimized Power Dissipation
●Sink/Source Interlock Circuitry Prevents Simultaneous Conduction
● No Output Glitch During Power Up or Power Down
●Improved Functional Replacement for the SGS L293
SN754410NEE4 Functional Block Diagram
SN754410NEE4 Functional Block Diagram
SN754410NEE4 Application
-
Stepper Motor Drivers
-
DC Motor Drivers
-
Latching Relay Drivers

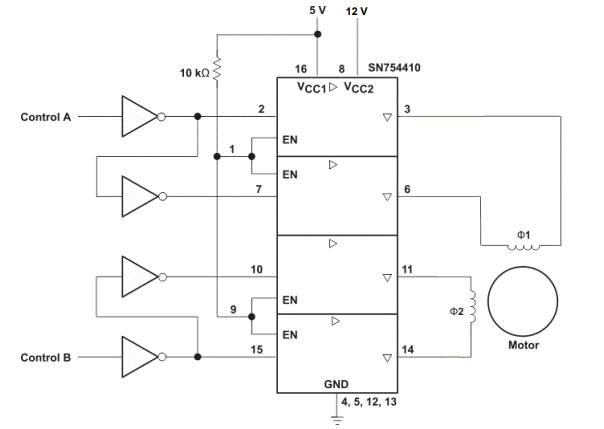

SN754410NEE4 Typical Application Circuit
Provide a 5-V supply to VCC1 and valid logic input levels to data and enable inputs. VCC2 must be connected to a power supply capable of supplying the needed current and voltage demand for the loads connected to the outputs.
The SN754410NEE4 Typical Application Circuit is shown below:
SN754410NEE4 Typical Application Circuit
SN754410NEE4 Manufacturer
Texas Instruments (TI) is a global semiconductor firm originating in 1958 and nowadays it has over 30,000 employees who design, conduct and sell analogue and product-differentiating embedded processing components in 35 countries. Aimed at changing the world of tech, TI has put great effort into becoming the solution provider coupled with a vision.
Datasheet PDF
Download datasheets and manufacturer documentation for Texas Instruments SN754410NEE4.
SN754410NEE4 Documents
SN754410NEE4 Documents
Download datasheets and manufacturer documentation for SN754410NEE4
Frequently Asked Questions
What is SN754410NEE4?
The SN754410NEE4 is a quadruple high-current half-H driver designed to provide bidirectional drive currents up to 1 A at voltages from 4.5 V to 36 V. A separate supply voltage (VCC1) is provided for the logic input circuits to minimize device power dissipation.
How much current is the SN754410NEE4 rated to output continuously?
The current rating of the stepper motor is about 0.6 A and since continuous output current is given as 1.1A in the datasheet, I don't expect excessive heat. However, the other issue is output supply current is given as 70mA in the datasheet.
What package is the SN754410NEE4 available in?
It is available in 16-DIP (0.300, 7.62mm) package.
What is the SN754410NEE4 designed for?
The SN754410 is designed for operation from −40°C • Stepper Motor Drivers to 85°C.
FAQ
What is SN754410NEE4?
The SN754410NEE4 is a quadruple high-current half-H driver designed to provide bidirectional drive currents up to 1 A at voltages from 4.5 V to 36 V. A separate supply voltage (VCC1) is provided for the logic input circuits to minimize device power dissipation.
How much current is the SN754410NEE4 rated to output continuously?
The current rating of the stepper motor is about 0.6 A and since continuous output current is given as 1.1A in the datasheet, I don't expect excessive heat. However, the other issue is output supply current is given as 70mA in the datasheet.
What package is the SN754410NEE4 available in?
It is available in 16-DIP (0.300, 7.62mm) package.
What is the SN754410NEE4 designed for?
The SN754410 is designed for operation from −40°C • Stepper Motor Drivers to 85°C.
